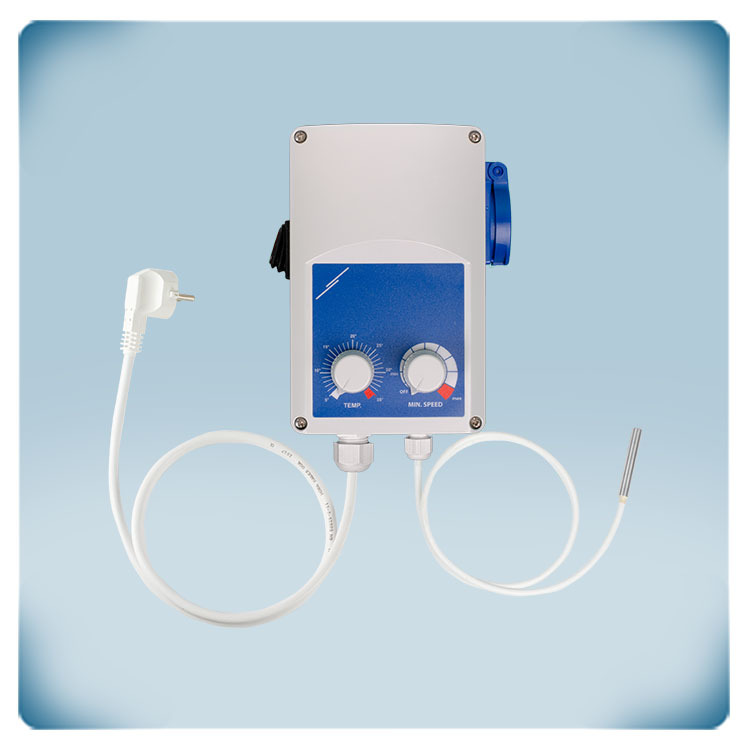

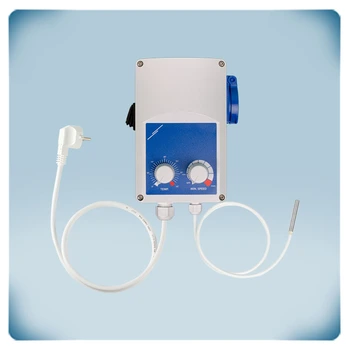

.webp "Fan speed controller with PT500 temperature probe")

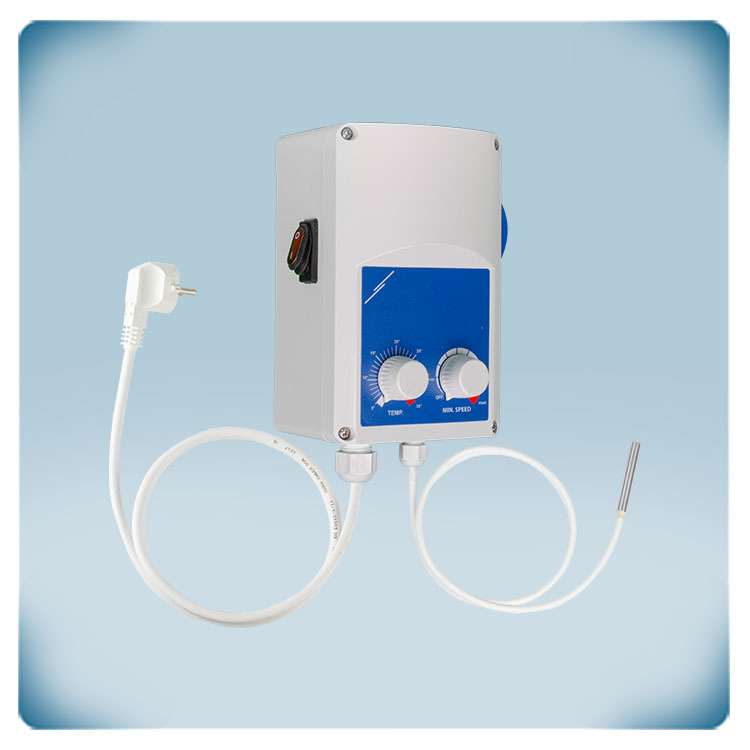

.webp "Temperature based fan speed regulator")

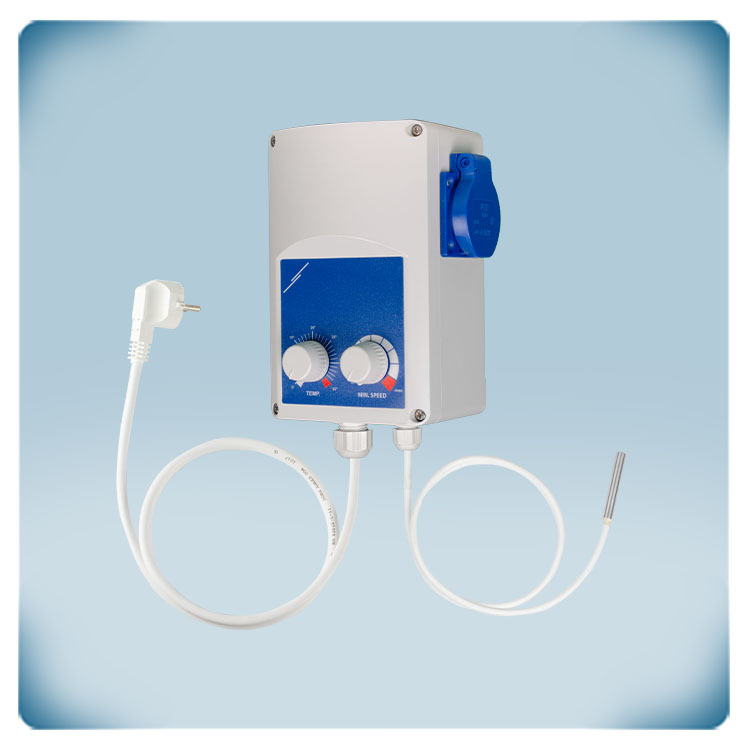

.webp "Temperature based fan speed control")
EU declaration conformity
Grow room air extraction | 5-35 °C | Prewired | 6 Amps
Product description
Precise temperature-based speed control for single-phase motors (up to 6 A).
Fan adjusts speed to maintain set temperature (5-35 °C); idles below setpoint, full speed above.
PT500 temperature probe input (pre-wired DT version) and potentiometers for setpoint/min speed.
Internal trimmer for max speed, hysteresis, and proportional range.
IP54 RABS V0 grey (RAL7035) enclosure with Schuko/Euro plugs and pre-wired cables.
230 VAC supply with adjustable Vmin (80-160 VAC) and Vmax (170-230 VAC).
Additional specifications and description
How Is Fan Speed Controlled Based on Temperature?
Fan speed is regulated based on the measured temperature. When the ambient temperature is lower then the temperature set point, the fan does not run. Once the measured temperature goes beyond the desired temperature set point, the exhaust fan accelerates towards full speed until the measured temperature is within range again. Once this happens, the fan speed will fall back until the idling speed is reached. After a while, the temperature will go out of bounds again and the fan will accelerate again. The desired temperature can be set in the range of 5 – 35 °C. This allows for selecting the optimal conditions for the growth of your produce.
What Are the Plug & Play Features of This AC Fan Speed Controller?
This AC fan speed controller is 100 % ‘plug & play’. It works by simply plugging it into the mains network via a standard Schuko socket. It does not require any configuration or wiring. The PT500 temperature probe (4 m cable length) and the power supply cable (1,5 m length) are prewired. The exhaust fan can be connected via the Schuko socket as well. Consult the datasheet or mounting instructions to learn how to adjust the hysteresis and ranges.
How Can I Adjust Temperature and Motor Speed Settings?
Via the two built-in potentiometers, it is possible to set the desired temperature and adjust the minimum motor speed. These potentiometers can be controlled by turning a rotary knob. The temperature setpoint can be set in the range of 5 – 35 °C. Motor speed is controlled by controlling the motor voltage. This fan speed controller therefore only works for voltage controllable motors. If there is uncertainty whether your motor is voltage controllable, please check with your motor manufacturer. The minimum motor voltage can be set in the range of 80 – 160 VAC. The maximum motor voltage can be set in the range of 170 – 230 VAC through an internal trimmer.
What Are the Enclosure's Safety and Durability Features?
This controller is the result of many years of experience in growing room air extraction combined with innovative electronics technology. This device is extremely reliable and safe. The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is flame extinguishing in case of fire. It is very though and it offers good protection against impacts. The enclosure offers IP54 protection against the ingress of dust, dirt and water. However, to guarantee a good service life, it should be installed in a place away from direct sunlight. This fan speed controller is suited for wall mounting.
How Does Triac Technology Affect Fan Speed Regulation and Motor Noise?
This fan speed controller uses Triac technology to regulate fan speed. Fan speed controllers with Triac technology regulate the motor continuously variable. The phase angle control of the Triacs ensure the fan speed controller operates completely silently. The drawback is that the motor may make some noise at low speeds. This is because the AC motor voltage will not have a perfect sinusoidal shape. To prevent motor noise, it is possible to increase the minimum motor voltage.
Fan speed is regulated based on the measured temperature. When the ambient temperature is lower then the temperature set point, the fan does not run. Once the measured temperature goes beyond the desired temperature set point, the exhaust fan accelerates towards full speed until the measured temperature is within range again. Once this happens, the fan speed will fall back until the idling speed is reached. After a while, the temperature will go out of bounds again and the fan will accelerate again. The desired temperature can be set in the range of 5 – 35 °C. This allows for selecting the optimal conditions for the growth of your produce.
What Are the Plug & Play Features of This AC Fan Speed Controller?This AC fan speed controller is 100 % ‘plug & play’. It works by simply plugging it into the mains network via a standard Schuko socket. It does not require any configuration or wiring. The PT500 temperature probe (4 m cable length) and the power supply cable (1,5 m length) are prewired. The exhaust fan can be connected via the Schuko socket as well. Consult the datasheet or mounting instructions to learn how to adjust the hysteresis and ranges.
How Can I Adjust Temperature and Motor Speed Settings?
Via the two built-in potentiometers, it is possible to set the desired temperature and adjust the minimum motor speed. These potentiometers can be controlled by turning a rotary knob. The temperature setpoint can be set in the range of 5 – 35 °C. Motor speed is controlled by controlling the motor voltage. This fan speed controller therefore only works for voltage controllable motors. If there is uncertainty whether your motor is voltage controllable, please check with your motor manufacturer. The minimum motor voltage can be set in the range of 80 – 160 VAC. The maximum motor voltage can be set in the range of 170 – 230 VAC through an internal trimmer.
What Are the Enclosure's Safety and Durability Features?
This controller is the result of many years of experience in growing room air extraction combined with innovative electronics technology. This device is extremely reliable and safe. The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is flame extinguishing in case of fire. It is very though and it offers good protection against impacts. The enclosure offers IP54 protection against the ingress of dust, dirt and water. However, to guarantee a good service life, it should be installed in a place away from direct sunlight. This fan speed controller is suited for wall mounting.
How Does Triac Technology Affect Fan Speed Regulation and Motor Noise?
This fan speed controller uses Triac technology to regulate fan speed. Fan speed controllers with Triac technology regulate the motor continuously variable. The phase angle control of the Triacs ensure the fan speed controller operates completely silently. The drawback is that the motor may make some noise at low speeds. This is because the AC motor voltage will not have a perfect sinusoidal shape. To prevent motor noise, it is possible to increase the minimum motor voltage.
