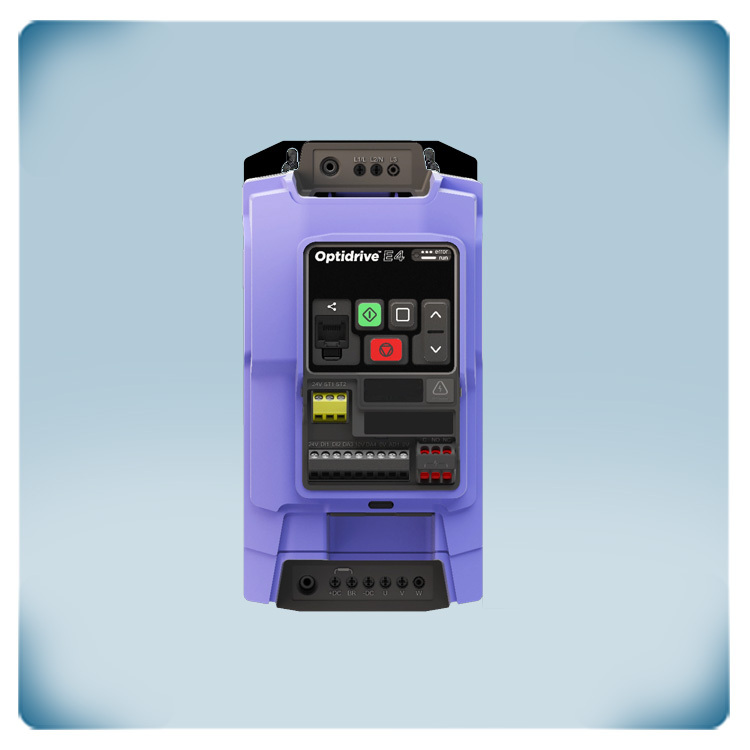

Frequency inverter 400 V | 7.7 A | 3 kW | IP20

Product description

Variable frequency drive designed for control of HVAC fans and pumps with three-phase 400 V motors. The drive’s application modes ensure simple commissioning and dependable operation.

Efficient motor performance is achieved without encoder feedback using sensorless vector control. Numerous motor types are supported including induction, BLDC, permanent magnet, synchronous reluctance and PMAREL motors.

The drive provides motor protection functions such as flow detection, low load detection and motor connection monitoring. It supports advanced braking methods including DC injection, dynamic braking and AC flux braking. The integrated STO (SIL3) function allows safe disabling of motor torque generation.

Communication is possible via Modbus RTU, CANopen or BACnet MS/TP. The enclosure is suitable for DIN-rail mounting in an electrical cabinet and provides IP20 protection against dust ingress.

Manufacturer code: ODE-4-240075-3F42
