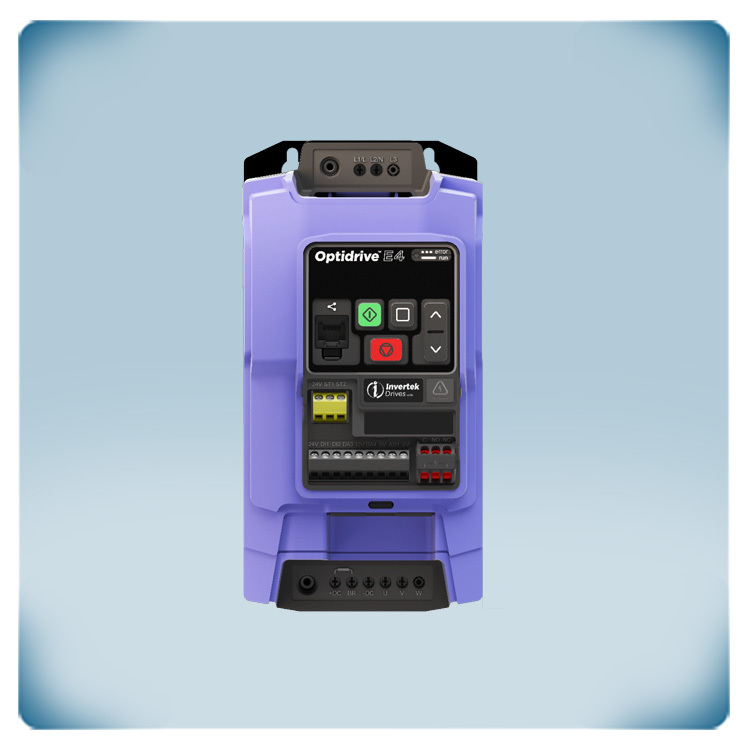

Frequency inverter 400 V | 5.8 A | 2.2 kW | IP20

Product description

Variable frequency drive intended for regulation of HVAC fans and pumps with three-phase 400 V motors. The drive features application modes that ensure simple commissioning and reliable operation.

Sensorless vector control provides efficient motor performance without encoder feedback. Different motor types are supported including induction, BLDC, permanent magnet, synchronous reluctance and PMAREL motors.

The drive provides motor protection functions such as flow detection, low load detection and motor connection monitoring. Advanced braking functions are available including DC injection, dynamic braking and AC flux braking. The integrated STO (SIL3) function ensures safe disabling of motor torque generation.

Communication is achieved via Modbus RTU, CANopen or BACnet MS/TP. The enclosure is designed for DIN-rail mounting in an electrical cabinet and provides IP20 protection against dust ingress.

Manufacturer code: ODE-4-240058-3F42
