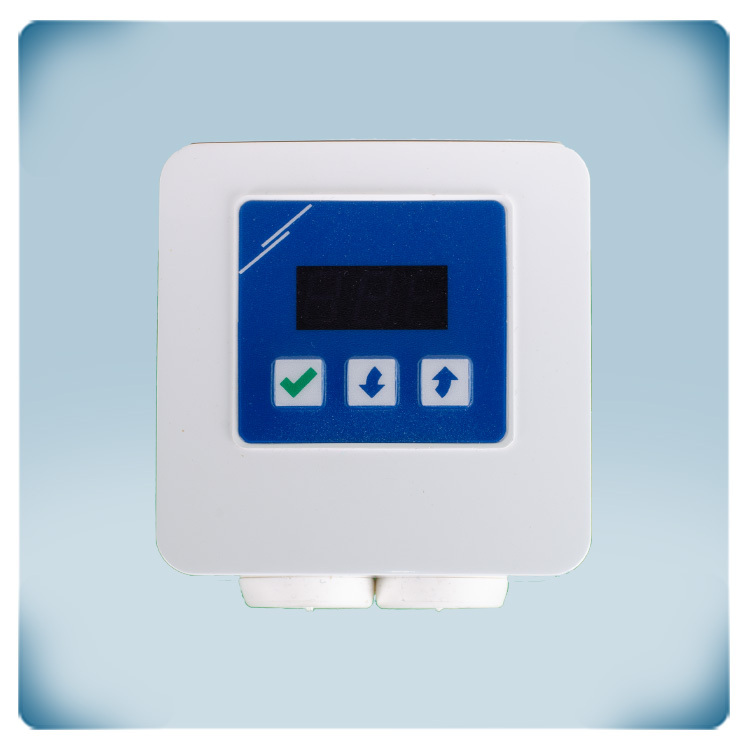

White plastic enclosure, display, blue front label

EC motor 230 V | remote fan speed control | display

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code RD1------001

Current stock 19 U.

Factory lead time 4 Week(s)

Solution description

This digital potentiometer controls EC fans. Fan speed can be adjusted continuous variable or in 2-10 steps. The fan speed can be manually set via the up and down arrows. By pressing the button with the green check mark during 4 seconds, the control signal can be activated or deactivated. The selected fan speed is visualised via the 7-segment LED display (% or step number). The control signal type, minimum value, maximum value and other parameter settings can be adjusted via Modbus RTU communication.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

RDCV9-AD-WH

1 U.

RDCV EC Fan Speed Controller: Precise Ventilation Control The RDCV EC Fan Speed Controller is a digital potentiometer and HVAC controller that offers precision in ventilation management with advanced features and a sleek design. Easy Operation: It provides effortless adjustment in manual mode via an intuitive 3-button interface and an LED display. Users can choose between manual or automatic modes. Versatile Output: This controller can operate EC fans, AC fan speed controllers, frequency inverters, or damper actuators. It offers options for continuously variable or 2-10 step output. Smart Automation: In automatic mode, it dynamically adjusts fan speed based on data from connected Sentera HVAC sensors (such as temperature, humidity, CO2, etc.), providing intelligent, demand-based ventilation. Settings can be configured via Modbus RTU or the interface. Flexible Integration: It operates within a 110-230 VAC supply voltage range. It supports both surface and flush mounting options. The RDCV is an ideal solution for modern ventilation needs, combining a user-friendly interface, smart automatic mode, and flexible installation options.
